Custom Molded Heat Resistant Flat Rubber Gasket Seals Nbr Epdm Fkm Silicone Rubber Gasket

Product Description – Custom Gasket & Seal Components
Precision-cut gasket and seal parts, primarily made from rubber, silicone, or composite materials, designed to create airtight, watertight, or dustproof barriers between mating surfaces in industrial, automotive, and mechanical equipment.

Core Features

• Material Options: NBR, EPDM, silicone, or fiber-reinforced composites, chosen for chemical resistance, temperature tolerance, or flexibility. Colored materials available (black, red, yellow).

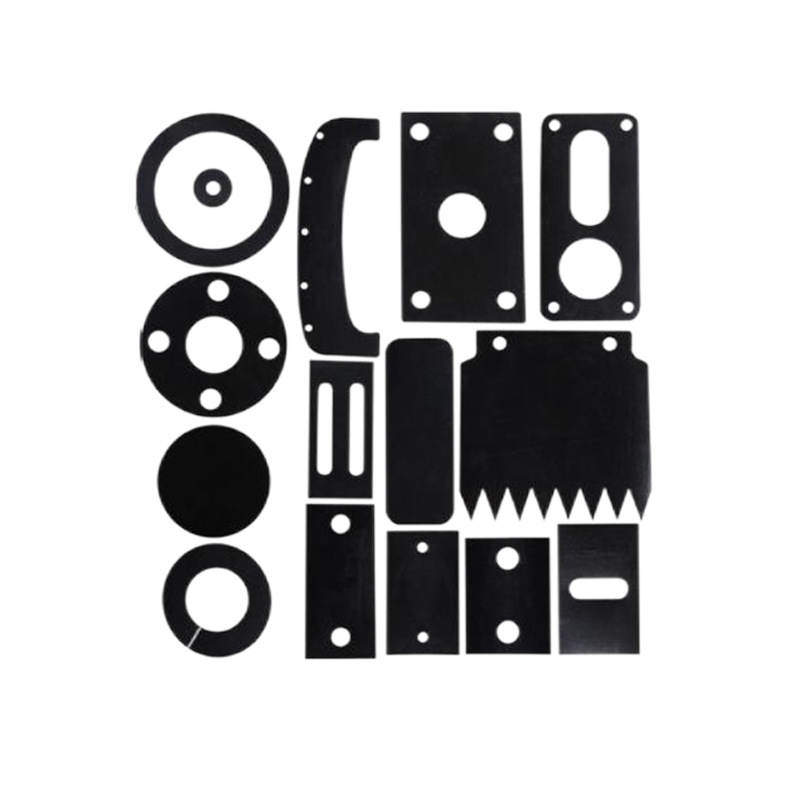

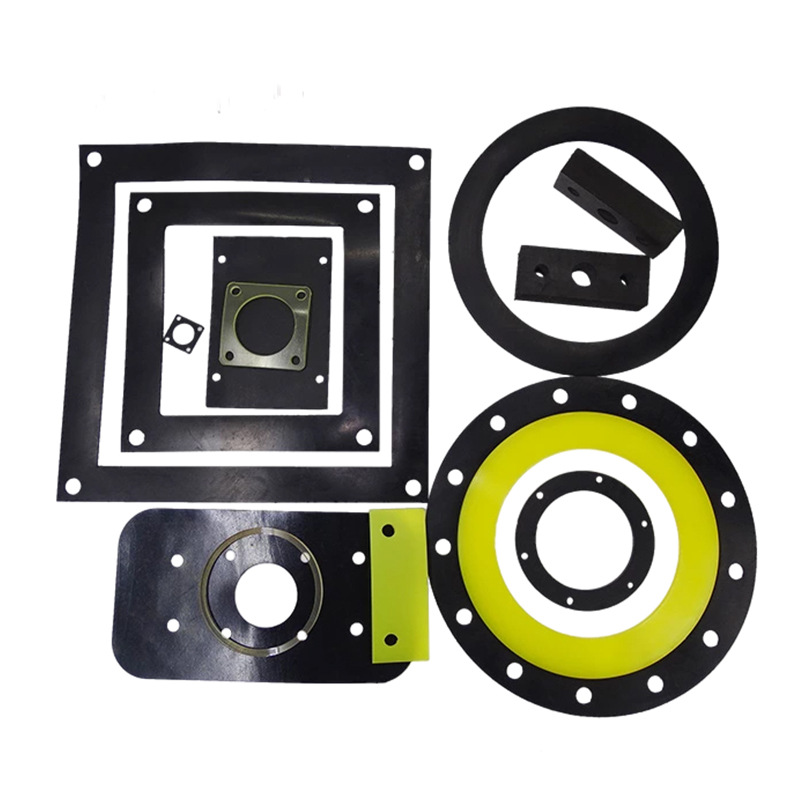

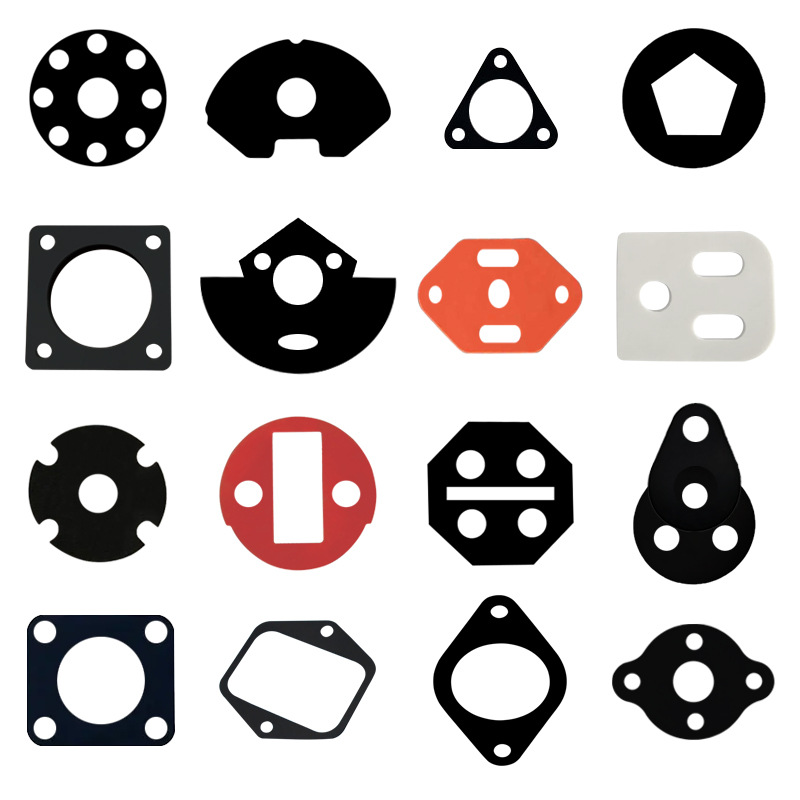

• Versatile Shapes: Custom-cut into circular, square, irregular, and multi-layered profiles, with holes, slots, or notches to fit specific equipment interfaces.

• Functional Benefits: Provides vibration dampening, prevents fluid or air leakage, and protects components from contaminants; suitable for high-pressure or temperature-varying environments.

• Easy Installation: Pre-drilled mounting holes ensure alignment with equipment flanges or casings.

Technical Specifications

• Thickness Range: 0.5 mm – 10 mm (customizable per application)

• Dimensional Tolerance: ±0.1 mm (precision-cut profiles)

• Operating Temperature: -40°C to 200°C (depends on material; silicone for high temp, NBR for oil resistance)

• Pressure Resistance: Up to 10 bar (static sealing; higher pressure options available)

• Customization: Shape, size, material, and mounting hole layout per client drawings

• Applications: Pumps, valves, pipe flanges, automotive engines, industrial machinery
